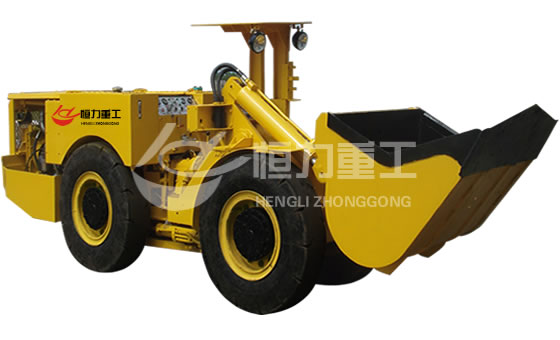

  • 1 cubic main technical characteristics of diesel LHD
    Underground diesel LHD series is mainly used wells mountains to shovel loose material after blasting transport dominated. Can also be used in railway, highway and water conservancy engineering, especially for poor working conditions, job site stenosis, low and muddy work surface. The machine adopts imported engine power system, hydraulic control variable pump - variable motor - gear box - front and rear axles - four rubber wheel drive. Using a rotary bearing link rear rack swing. Working hydraulic control system using pilot operation, making operation more simple LHD, efficient, low failure rate. Emergency, parking brake uses a closed friction disc brakes, spring brake, the brake fluid pressure is released, the brake power outage immediately, its safety and reliability.


  • Parameter Parameter values
    Rated bucket capacity(m³) 1
    Rated load(t) 2
    Maximum scooping force(kn) 45
    Maximum traction(kn) 56
    Maximum unloading height(mm) 1050
    Maximum gradeability(°) ≤20
    Minimum Unloading distance(mm) 860
    Minimum turning radius (outside / inside)(mm) 4260/2540
    Travel speed(km/h) 0~8
    Ground clearance(mm) 200
    Departure angle(°) 16
    Maximum steering angle(°) ±38
    Rack swing angle(°) ±8
    Wheelbase(mm) 2200
    Weight(kg) 6600
    Dimensions (L x W x H) 6090x1300x2000
    Note: The above parameters are for reference only, and may differ from the actual parameters.
